Description

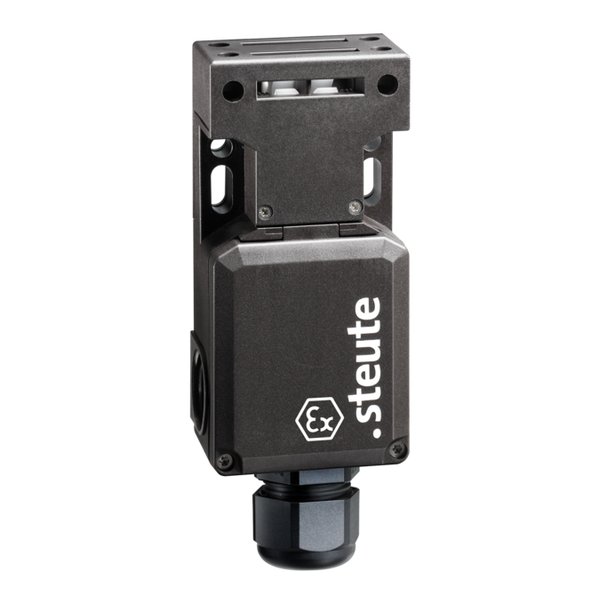

Steute Ex AZ 16 2Ö/1S-3D. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex AZ 16 2Ö/1S-3D |
| Article No. (MPN) | 1210553 |
| Product Category | Sensors |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Cable cross-section | min. 0.2 mm² (AWG 24), max. 1.5 mm² (AWG 16) |
| Clamping range | 7 … 12 mm |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | T6: 6 A, T5: 3 A |
| Rated operating current/voltage I e /U e | 3 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 3 A gG fuse |
| Ambient temperature | T80 °C: -20 °C … +55 °C; T95 °C: -20 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Impact energy | max. 7 J |
| Condition | New & original |
| Availability | On request |
