Description

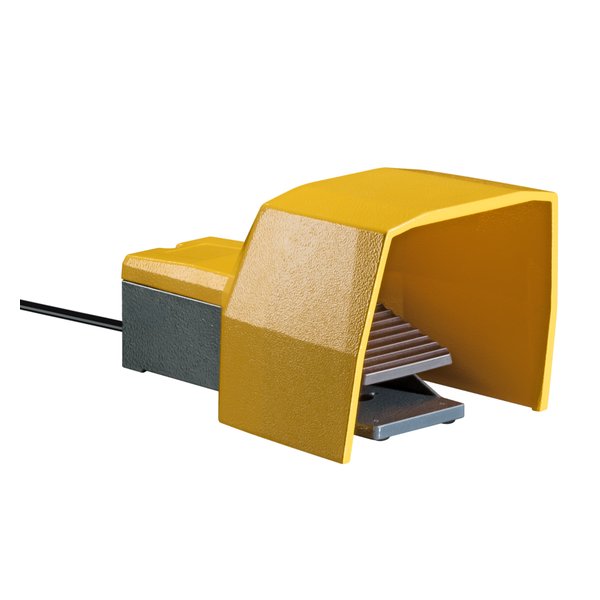

Steute Ex GFS 1NC/1NO 5m JPEx. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex GFS 1NC/1NO 5m JPEx |
| Article No. (MPN) | 1222429 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Protective shield | aluminium die-cast, powder-coated, RAL 1003 |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 5 m |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Switch insert | 1 x Ex 14 |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 6 A/250 VAC, 0.25 A/230 VDC |
| Short-circuit protection | 6 A gG fuse |
| Ambient temperature | T6: -20 °C … +60 °C, T5: -20 °C … +75 °C |
| Mechanical life | > 1 million operations |
| Impact energy | max. 7 J |
| Ex marking | Ex db IIC T6/T5 Gb, Ex tb IIIC T80°C/T95°C Db |
| Approvals | Japan: CML 22JPN1380X (Ex 14) |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
