Description

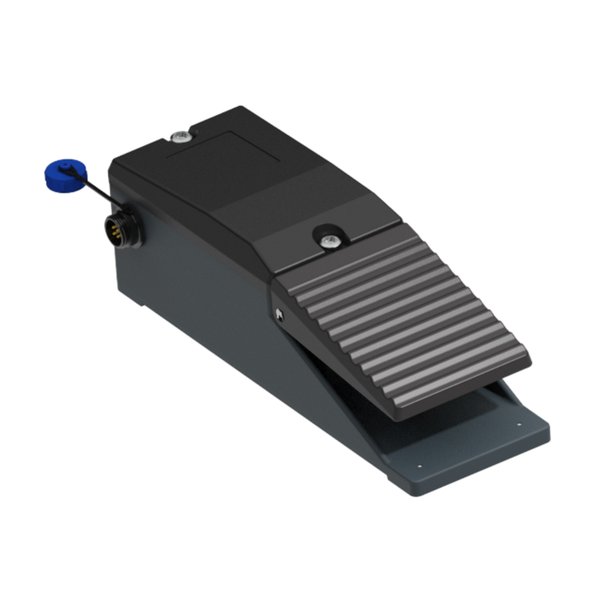

Steute RF GF SW2.4LE-IND. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF GF SW2.4LE-IND |
| Article No. (MPN) | 1224029 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Antenna | internal antenna |
| Degree of protection | IP65/IP67 (IEC/EN 60529) |
| Synchronisation after sleep mode | 67 ms (typical), 110 ms (max) |
| Current consumption | active: < 12.2 mA, sleep: < 0.13 mA |
| Mechanical life | > 1 million operations |
| Switching elements | 2 NO contacts per pedal |
| Rated operating voltage U e | 7.5/9.0 VDC ±10 % |
| Rated operating current I e | < 500 mA |
| Ambient temperature | -20 °C … +55 °C |
| Storage and shipping temperature | -20 °C … +60 °C |
| Ambient temperature charging | 0 °C … +40 °C |
| Telegram rate | 20 ms (bidirectional) |
| Shock resistance | 10 g / 16 ms / 1000 impacts per axis |
| Vibration resistance | 5 g (10-150 Hz), 0.35 mm, 20 cycles |
| Frequency | 2.4 – 2.4835 GHz |
| Data rate | 1000 kbps |
| Modulation type | GFSK, adaptive frequency hopping of 40 channels |
| Channel spacing | 2000 kHz |
| Protocol | SW2.4LE |
| Condition | New & original |
| Availability | On request |
