Description

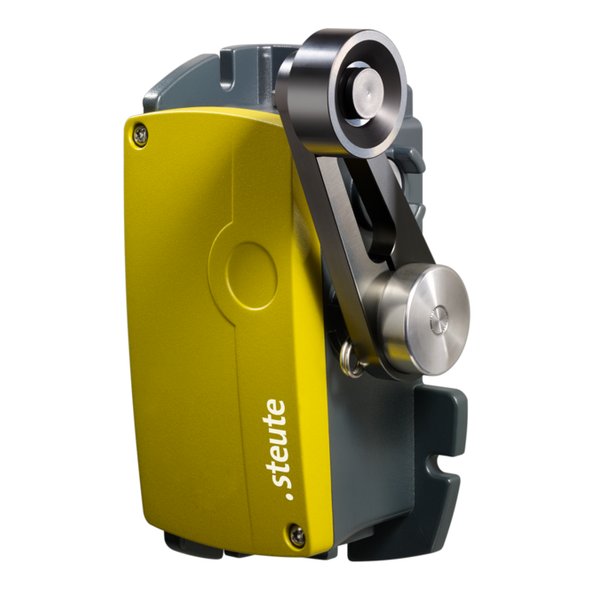

Steute EM 92 DL 22 -40°C … +85°C IP66/67 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | EM 92 DL 22 -40°C … +85°C IP66/67 Extreme |
| Article No. (MPN) | 1226715 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 13849-1, EN ISO 14119 |
| Switch type | type 1 |
| Coding level | no coding |
| Tightening torque | cover screws: max. 2.5 Nm |
| Degree of protection | IP66/IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | snap action, positive break NC contacts A |
| Switching elements | 2 NC/2 NO contacts, type Zb |
| Switching points | adjustable 5° to 35°; pre-adjustment setting 2 x 10° |
| Connection | screw connection terminals |
| Cable cross-section | 0.5 … 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 2 x M25 x 1.5 |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 4 A |
| Conditional short-circuit current | 1100 A |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 4 A gG fuse |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
