Description

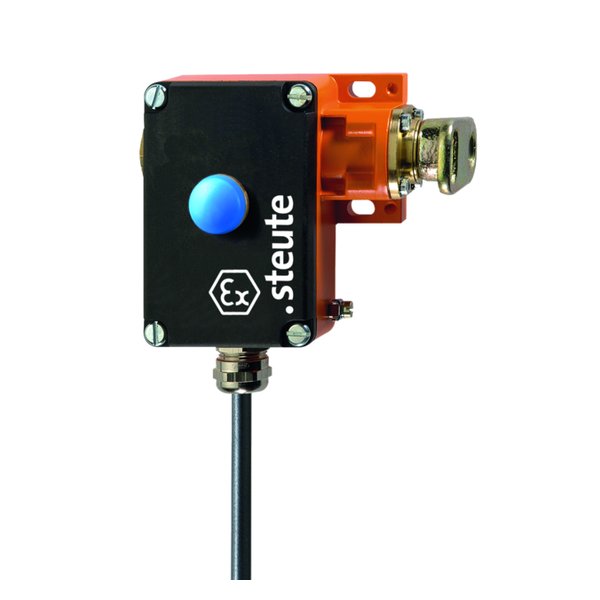

Steute Ex ZS 73 S 2Ö VD-3D 3m IP67. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ZS 73 S 2Ö VD-3D 3m IP67 |
| Article No. (MPN) | 1229951 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, enamel finish |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 200 000 |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC contacts, type Zb |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 3 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 6 A |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Short-circuit protection | 6 A gG fuse |
| Ambient temperature | -20 °C … +65 °C |
| Mechanical life | > 100 000 operations |
| Max. wire length | 2 x 100 m |
| Impact energy | max. 7 J |
| Condition | New & original |
| Availability | On request |
