Description

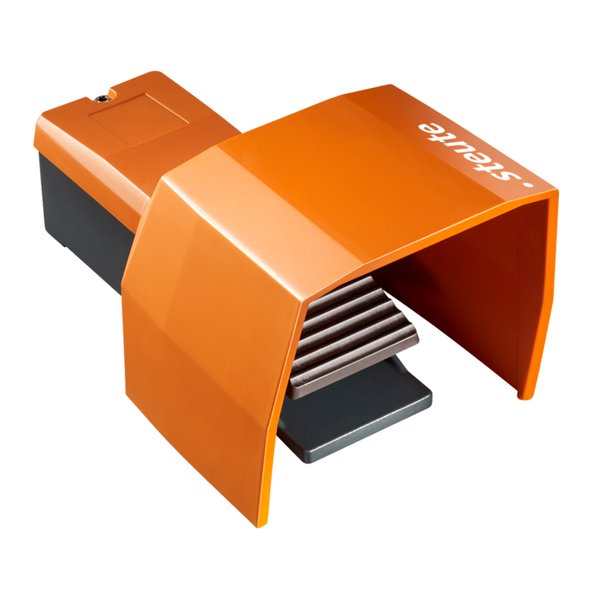

Steute GFS 1Ö/1S IP69 Thermoplastic protective shield, hard-coated enclosure — GFS 1Ö/1S IP69 Thermoplastic protective shield, hard-coated enclosure. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | GFS 1Ö/1S IP69 Thermoplastic protective shield, hard-coated enclosure |
| Article No. (MPN) | 1252778 |
| Product Category | Enclosures & Junction Boxes |
| Applied standards | EN 60947-5-1 |
| Enclosure | aluminium die-cast, hard-coated, without enamel finish |
| Pedal | thermoplastic, glass-fibre reinforced, impact resistant |
| Protective shield | thermoplastic, glass-fibre reinforced, impact resistant |
| Tightening torque | cover screws: approx. 3 Nm |
| Degree of protection | IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Connection | screw connection terminals |
| Cable cross-section | max. 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 1 x M20 x 1.5 |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Utilisation category | AC-15 |
| Rated operating current/voltage I e /U e | 16 A/400 VAC |
| Short-circuit protection | 16 A gG/gN fuse |
| Ambient temperature | -25 °C … +80 °C |
| Mechanical life | > 1 million operations |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Weight | 946 g |
| Condition | New & original |
| Availability | On request |
