Description

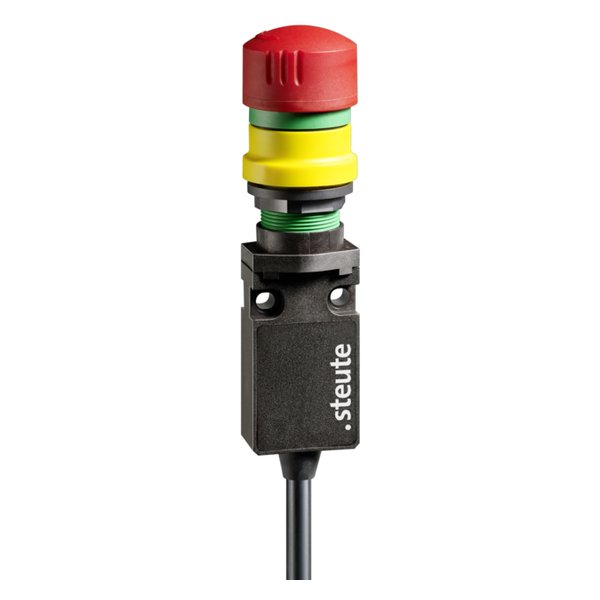

Steute ES 14 QRUV 2Ö 2m -40°C…+65°C Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ES 14 QRUV 2Ö 2m -40°C…+65°C Extreme |
| Article No. (MPN) | 1264315 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN 60947-5-5, EN ISO 13849-1, EN ISO 13850 |
| B 10d (10 % load) | 12 100 |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC contacts, type Zb |
| Connection | cable 4 x AWG 20 |
| Cable cross-section | 4 x 0.56 mm² |
| Cable length | 2 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 6 A |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG/gN fuse |
| Ambient temperature | -40 °C … +65 °C |
| Mechanical life | > 6050 operations |
| Operation cycles | max. 1800/h |
| Contact opening | max. 2 x 4 mm |
| Weight | 154 g |
| Condition | New & original |
| Availability | On request |
