Description

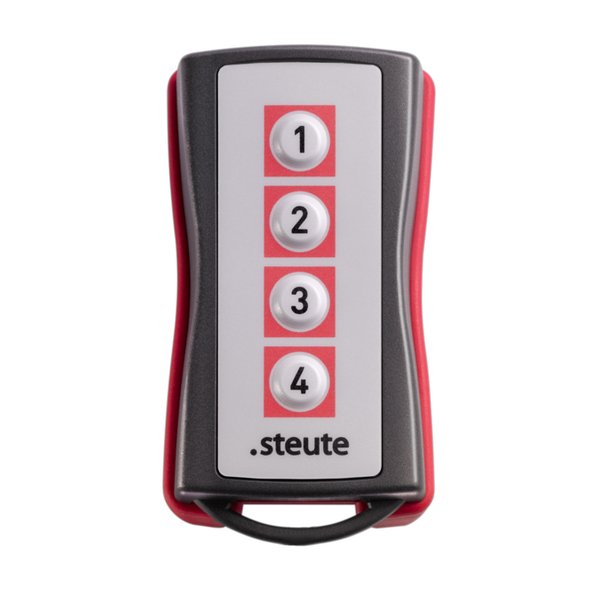

Steute RF HB SW868-4CH LBT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF HB SW868-4CH LBT |
| Article No. (MPN) | 1293549 |
| Product Category | Sensors |
| Enclosure | ABS, graphite grey, similar to RAL 7024 |
| Decor seal | TPE, signal red, similar to RAL 3001 |
| Degree of protection | IP54 (IEC/EN 60529) |
| Safety class | III |
| Ambient temperature | -20 °C … +65 °C |
| Storage and shipping temperature | -40 °C … +85 °C |
| Sensor system | manually operated |
| Switching system | internal micro switch |
| Switching elements | NO contact |
| Mechanical life | > 1 million operations |
| Actuating time | min. 80 ms |
| Switching frequency | max. 5 Hz |
| Note | transmission of battery voltage and switching condition |
| Weight | 60 g |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
