Description

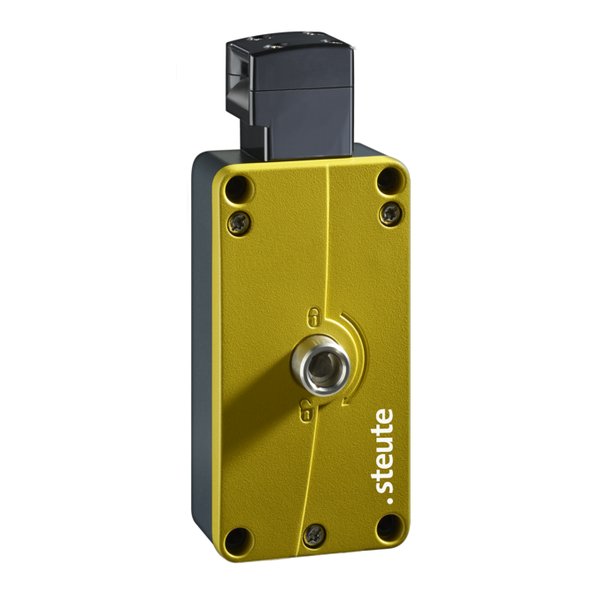

Steute STM 515 11/11 R TB/FE L Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | STM 515 11/11 R TB/FE L Extreme |
| Article No. (MPN) | 1298130 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 14119, EN ISO 13849-1 |
| Screws | stainless steel |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP66/IP67 (IEC/EN 60529) |
| B 10d (6.7 % load) | 1.5 million |
| T m | max. 20 years |
| Mounting | 4 x M6 cylinder head screw (e.g. DIN 912 / ISO 4762) |
| Mounting position | any |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact + 1 NC/1 NO contact, type Zb |
| Contact material | silver |
| Connection | screw connection terminals |
| Cable entry | 2 x M20 x 1.5 (for cable glands only) |
| Rated insulation voltage U i | 250 V |
| Rated impulse withstand voltage U imp | 4 kV |
| Conventional thermal current I the | 6 A |
| Conditional short-circuit current | 1000 A |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG/gN fuse; direct-current solenoid: 2 A (slow blow) |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
