Description

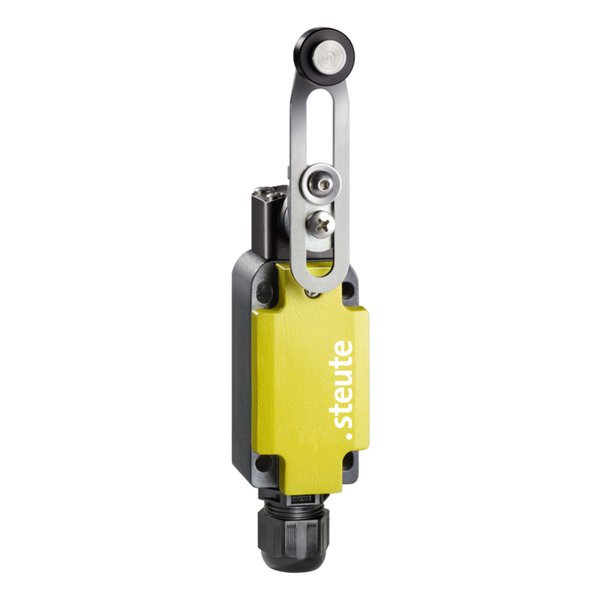

Steute ES 98 DS-11 +90°C IP69 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ES 98 DS-11 +90°C IP69 Extreme |
| Article No. (MPN) | 1306842 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Degree of protection | IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653) |
| Contact material | silver |
| Switching system | slow action |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Cable cross-section | max. 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 1 x M20 x 1.5 (for cable glands only) |
| Clamping range | 6 … 13 mm |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 6 A |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC; 3 A/24 VDC; 5 A/5 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG fuse |
| Mechanical life | > 1 million operations |
| Actuating speed | max. 2.5 m/s with a vertical actuating angle of 30° |
| Operation cycles | max. 1800/h |
| Ambient temperature | -20 °C … +90 °C |
| Approvals | d a < |
| Condition | New & original |
| Availability | On request |
