Description

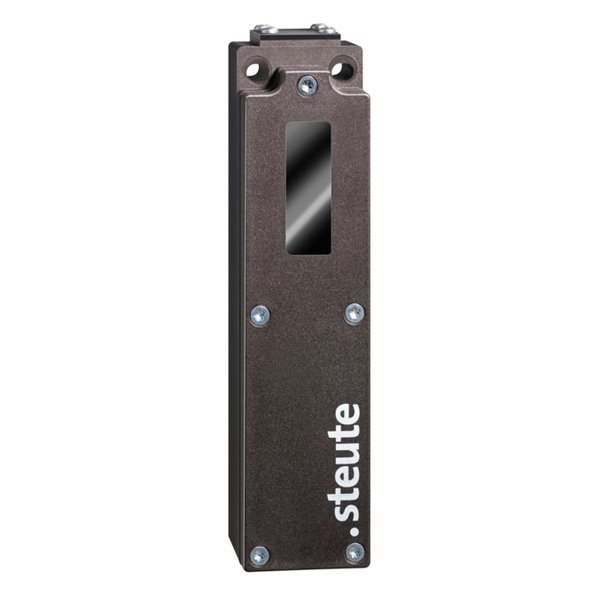

Steute RF 96 LT SW868 LBT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF 96 LT SW868 LBT |
| Article No. (MPN) | 1318835 |
| Product Category | Sensors |
| Degree of protection | IP54 (IEC/EN 60529) |
| Sensor | IR reflective light sensor |
| Ambient temperature | 0 °C … +65 °C |
| Switching frequency | max. 1 Hz |
| Standby current | 130 µA sensor not actuated, 250 µA sensor actuated |
| Actuating time | min. 300 ms |
| Note | transmission of battery voltage and switching condition |
| Weight | 132 g |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Wireless approvals | Europe: RED 2014/53/EU |
| Telegram rate | max. 12000 telegrams with repetitions/h |
| Wireless range | max. 450 m outdoors, max. 40 m indoors |
| Voltage source | lithium battery Tadiran SL-2770 (C), replaceable |
| System | Li/SOCl 2 |
| Nominal voltage | 3.6 V |
| Condition | New & original |
| Availability | On request |
