Description

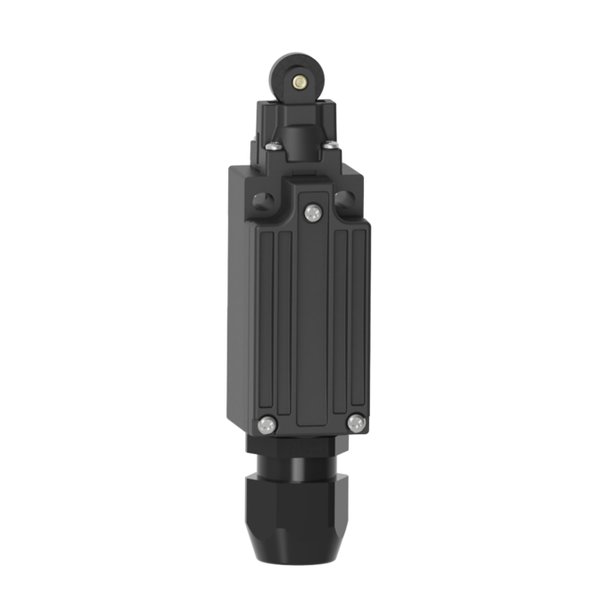

Steute Ex ES 97 RL-11-3G/D. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ES 97 RL-11-3G/D |
| Article No. (MPN) | 1319734 |
| Product Category | Sensors |
| Sealing | silicone |
| Switch type | type 1 |
| Coding level | no coding |
| Tightening torque | cover screws: 0.4 … 0.5 Nm |
| Degree of protection | IP66 / IP67 (EN IEC 60079-0 + IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | Silver, nickel-plated |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Utilisation category | AC-15 |
| Rated operating current/voltage I e /U e | max. 3 A or 6 A / max. 250 V |
| Mechanical life | 1 million operations |
| Impact energy | max. 4 J |
| Temperature class | T6 |
| Ambient temperature | -20 °C … +45 °C max. 6 A, -20 °C … +60 °C max. 3 A |
| Short-circuit protection | 3 A / 6 A gG/gN fuse |
| Safety class | II |
| Condition | New & original |
| Availability | On request |
