Description

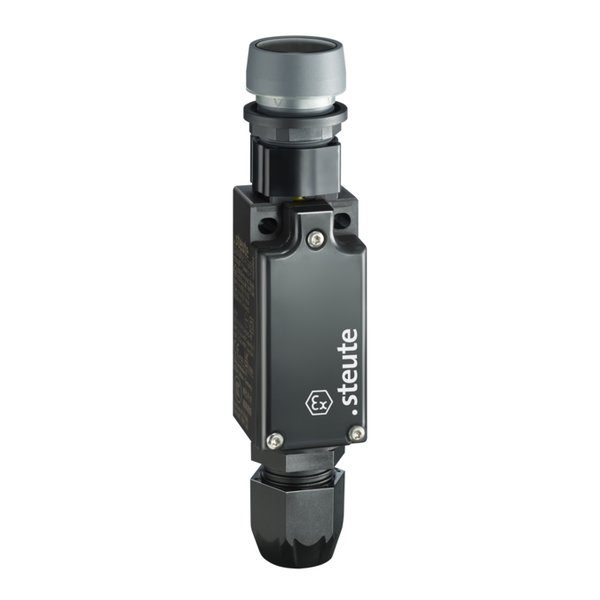

Steute Ex ES 97 RT-11 -20°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ES 97 RT-11 -20°C |
| Article No. (MPN) | 1332187 |
| Product Category | Sensors |
| Sealing | silicone |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | Silver, nickel-plated |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Clamping range | 7 … 12 mm |
| Utilisation category | AC-15 |
| Rated operating current I e | max. 6 A or 3 A X |
| Rated operating voltage U e | max. 250 VAC |
| Mechanical life | 1 million operations |
| Impact energy | max. 7 J |
| Ambient temperature | -20 °C … +45 °C max. 6 A, -20 °C … +60 °C max. 3 A |
| Short-circuit protection | 3 A / 6 A gG/gN fuse |
| Approvals | BVS 16 ATEX E 052 IECEx BVS 16.0052 f |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
