Description

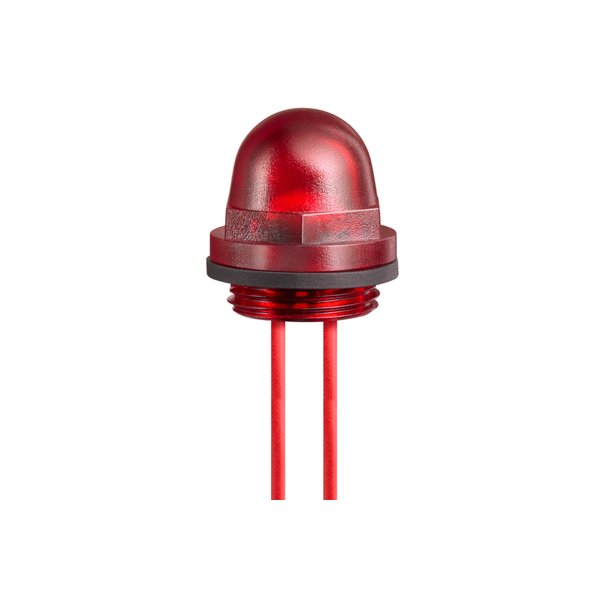

Steute Indicator lamp LED 24 VAC DC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Indicator lamp LED 24 VAC DC |
| Article No. (MPN) | 1348797 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Litz wire duct with strain relief | PA66, self-extinguishing UL 94 V-2, black |
| Sealing | EPDM |
| Tightening torque | indicator lamp: approx. 2.3 Nm |
| Degree of protection | IP66/IP67 (IEC/EN 60529), in mounted condition |
| Rated operating voltage range U B | 24 VAC/DC +10/-15 % |
| Rated operating current I e | ∼ 15 mA |
| Switch-on time ED | 100 % |
| Lamp | LED |
| Mounting position | any |
| Ambient temperature | -40 °C … +80 °C |
| Thread | M20 x 1.5 |
| Weight | 22 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
