Description

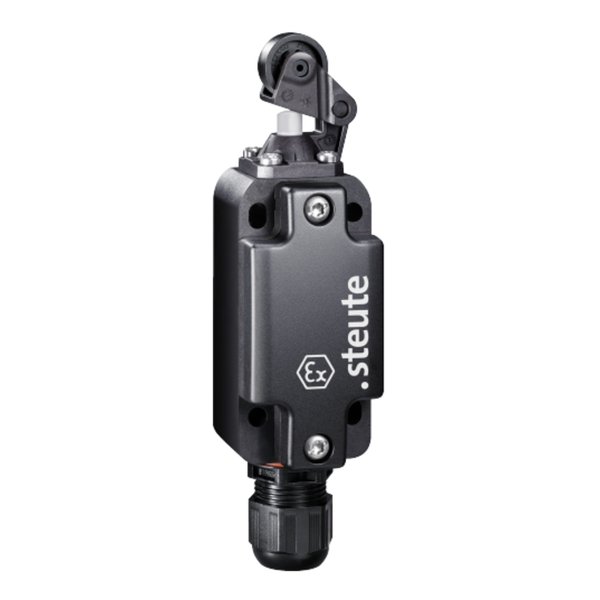

Steute Ex ES 99 H-11 -60°C X. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ES 99 H-11 -60°C X |
| Article No. (MPN) | 1349368 |
| Product Category | Sensors |
| Sealing | silicone |
| Switch type | type 1 |
| Coding level | no coding |
| Tightening torque | cover screws: 1.5 … 2 Nm |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | Silver, nickel-plated |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Clamping range | 7 … 12 mm |
| Utilisation category | AC-15 |
| Rated operating current I e | max. 2 A or 4 A X |
| Rated operating voltage U e | max. 500 VAC, max. 250 VAC for unequal potential |
| Mechanical life | > 1 million operations |
| Temperature class | T6 |
| Ambient temperature | -60 °C … +55 °C max. 4 A, +60 °C max. 2 A |
| Impact energy | max. 7 J down to -40 °C, max. 4 J down to -60 °C |
| Short-circuit protection | 2 A / 4 A gG fuse |
| Safety class | II |
| Condition | New & original |
| Availability | On request |
