Description

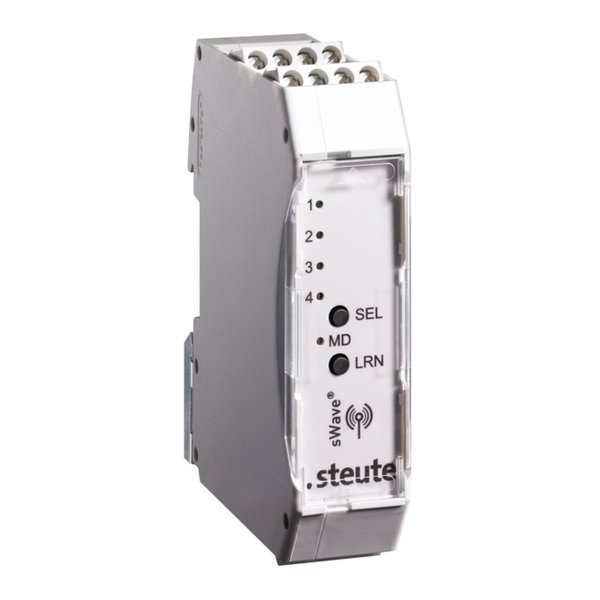

Steute RF Rx SW868-4S 48V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF Rx SW868-4S 48V |
| Article No. (MPN) | 1352672 |
| Product Category | Sensors |
| Enclosure | polyamide, self-extinguishing UL 94 V-0, RAL 7035 |
| Degree of protection | IP20 (IEC/EN 60529) |
| Mounting | DIN rail mounting |
| Inputs | 2 additional push buttons (SEL, LRN) |
| Rated operating voltage range U B | 12…48 VDC (-10 % … +25 %, abs. max. 60 V) |
| Rated operating current I e | 48 VDC: max. 16 mA 24 VDC: max. 21 mA |
| Rated operating voltage U e | 48 VDC |
| Rated operating current/voltage I e /U e | output contacts: 0.5 A / 48 VDC (abs. max. 60 V) |
| Utilisation category | DC-13 |
| Telegram rate | max. 12000 telegrams with repetitions/h |
| Ambient temperature | 0 °C … +55 °C |
| Storage and shipping temperature | -25 °C … +85 °C |
| Wireless approvals | Europe: RED 2014/53/EU |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 480 kHz |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Wireless range | max. 700 m outdoors, max. 50 m indoors |
| Condition | New & original |
| Availability | On request |
