Description

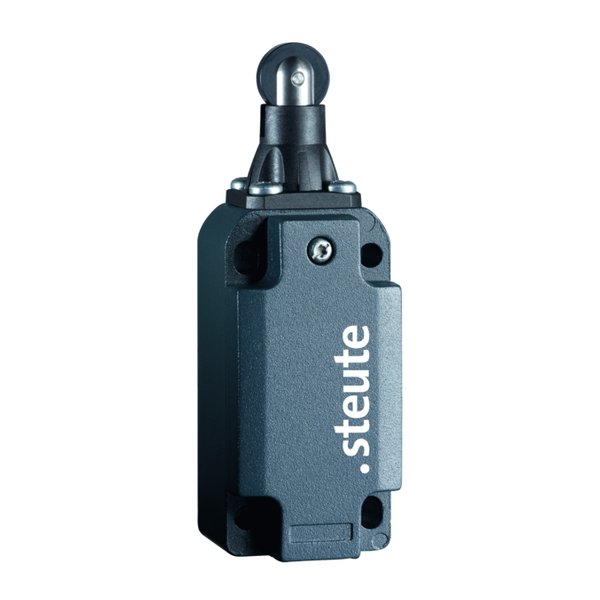

Steute HS 98 R 4-20 mA. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | HS 98 R 4-20 mA |
| Article No. (MPN) | 1355834 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-2, EN 60947-5-7 |
| Enclosure | aluminium die-cast, powder-coated |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | Hall sensor with analogue output |
| Linearity | 2 % |
| Connection | Cage clamps |
| Cable cross-section | max. 0.08 … 2.5 mm², AWG 28 … 12 |
| Cable entry | 1 x M20 x 1.5 |
| Over temperature protection | monitoring via μ controller + NTC |
| Rated operating voltage U e | 24 VDC |
| Rated operating voltage range U B | 18 … 30 VDC |
| Rated operating current I e | Q1+Q2: ≤ 135 mA at max. output current |
| Voltage drop at I e | 2 V |
| Burden | ≤ 400 Ω |
| Attendance delay t v | < 500 ms |
| Short-circuit protection | internal fuse 0.375 A F |
| Ambient temperature | -20 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Actuating speed | max. 0.25 m/s with a vertical actuating angle of 30° |
| Weight | 260 g |
| Condition | New & original |
| Availability | On request |
