Description

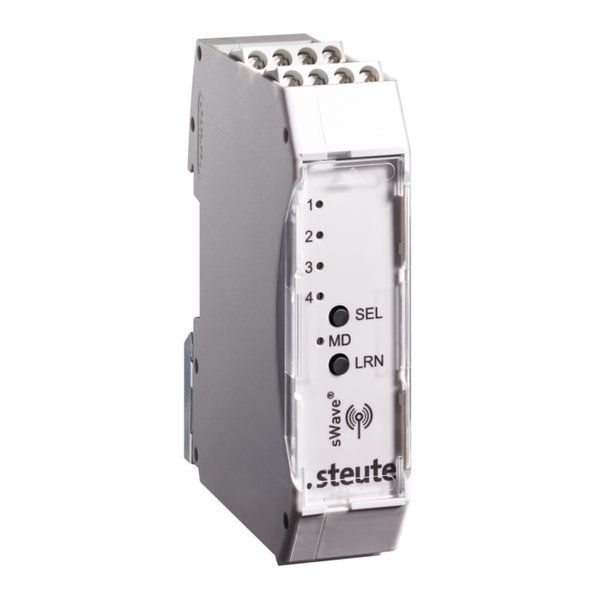

Steute RF Rx SW868-4S 24VDC Power-down-function. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF Rx SW868-4S 24VDC Power-down-function |
| Article No. (MPN) | 1363011 |
| Product Category | Sensors |
| Enclosure | polyamide, self-extinguishing UL 94 V-0, RAL 7035 |
| Degree of protection | IP20 (IEC/EN 60529) |
| Mounting | DIN rail mounting |
| Safety class | II |
| Teachable transmitters | 40 |
| Outputs | 4 NO contacts (relay) |
| Utilisation category | outputs: AC-15 (at 10 % I e ); DC-13 |
| Rated insulation voltage U i | 250 VAC |
| Rated impulse withstand voltage U imp | 2.5 kV |
| Mechanical life | > 5×10 6 operations |
| Electrical life | > 1×10 5 operations AC1 |
| Shock resistance | 1 g |
| Vibration resistance | 2 g (10-55 Hz) |
| Ambient temperature | -20 °C … +55 °C |
| Storage and shipping temperature | -25 °C … +85 °C |
| Weight | 80 g |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Condition | New & original |
| Availability | On request |
