Description

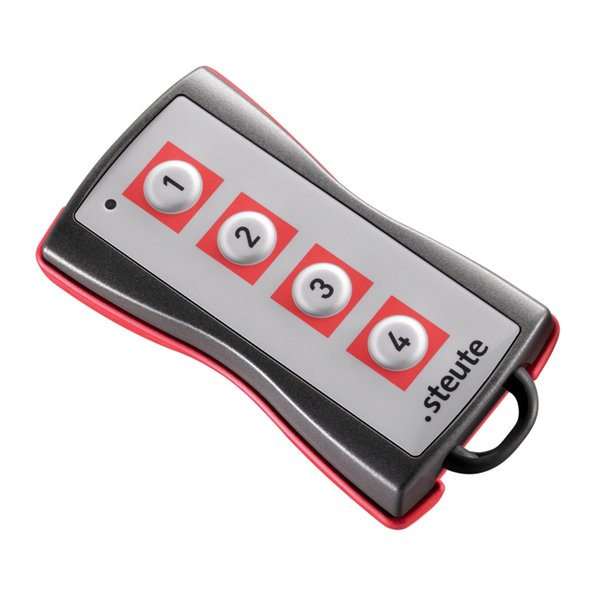

Steute RF HB SW2.4-IND. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF HB SW2.4-IND |
| Article No. (MPN) | 1365610 |
| Product Category | Sensors |
| Enclosure | ABS, graphite grey, similar to RAL 7024 |
| Decor seal | TPE, signal red, similar to RAL 3001 |
| Antenna | internal antenna |
| Degree of protection | IP54 (IEC/EN 60529) |
| Ambient temperature | 0 °C … +50 °C |
| Storage and shipping temperature | -10 °C … +50 °C |
| Rated operating current I e | Active: 25 mA, Sleep: 100 μA |
| LED display | LED red, LED green |
| Weight | 155 g |
| Frequency | 2.4 – 2.4835 GHz |
| Data rate | 250 kbps |
| Modulation type | 2-FSK |
| Channel spacing | 500 kHz |
| Output power | – 6 dBm e.i.r.p (0 dBm at 50 Ohm) |
| Input sensitivity | up to -98 dBm |
| Protocol | sWave® |
| Transmission power | 1 mW |
| Wireless range | max. 10 m indoors |
| Voltage source | 3 x batteries Micro/AAA/LR03 |
| System | Zn-MnO 2 (Alkaline) |
| Condition | New & original |
| Availability | On request |
