Description

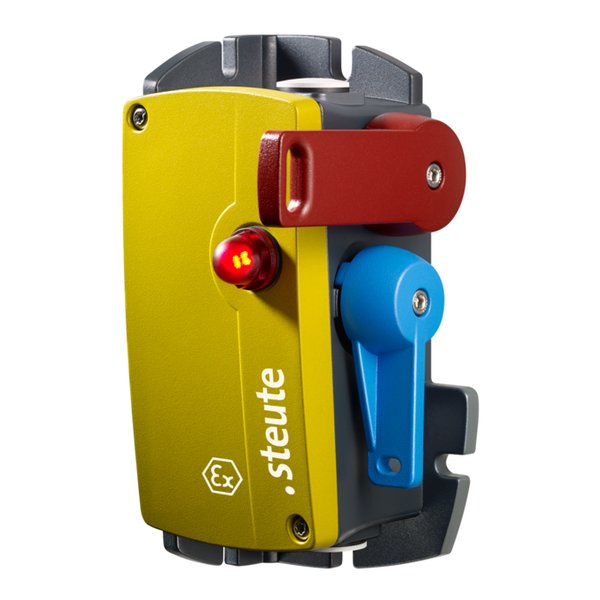

Steute Ex ZS 92 S 22 VD L F -20°C – 3D. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ZS 92 S 22 VD L F -20°C – 3D |
| Article No. (MPN) | 1383293 |
| Product Category | Sensors |
| Screws | stainless steel |
| Tightening torque | cover screws: max. 2.5 Nm actuator screws: max. 6 Nm |
| Degree of protection | IP66 (EN IEC 60079-0 + IEC/EN 60529) |
| B 10d (10 % load) | 100 000 |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | snap action, positive break NC contacts A |
| Switching elements | 2 NC/2 NO contacts, type Zb |
| Cable entry | 2 x M25 x 1.5 |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 2 A / 4 A / 6 A |
| Utilisation category | AC-15 |
| Rated operating current/voltage I e /U e | max. 2 A/4 A/6 A / 250 VAC |
| Short-circuit protection | 2 A / 4 A / 6 A gG/gN fuse |
| Mechanical life | > 50 000 operations |
| Max. wire length | 2 x 100 m |
| Rated operating voltage range U B | Indicator lamp: 24 VAC/DC +10/-15 % |
| Rated operating current I e | Indicator lamp: ∼ 15 mA |
| Actuating force | actuating lever approx. 30 N; reset lever approx. 40 N |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
