Description

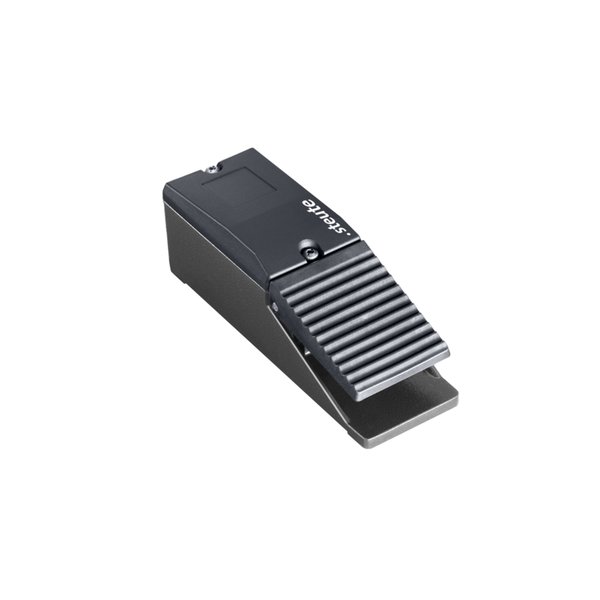

Steute GF IK 2S D 2Ö1ÖS-ZS. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | GF IK 2S D 2Ö1ÖS-ZS |
| Article No. (MPN) | 1394278 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-8, EN ISO 13849-1, GS-ET-22 |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Connection | screw connection terminals |
| Cable entry | 1 x M20 x 1.5 |
| Contact material | silver |
| Overvoltage category | III |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NO contacts + 1 NC/1 NO contact |
| Switch insert | 1 x EM 232 IK 2S + 1 x ES 60 1Ö/1S |
| Utilisation category | AC-15 |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 400 V |
| Conditional short-circuit current | 1100 A |
| Conventional thermal current I the | 3 A |
| Rated operating current/voltage I e /U e | 3 A/400 VAC |
| Short-circuit protection | 4 A gG fuse |
| Ambient temperature | -25 °C … +80 °C |
| Condition | New & original |
| Availability | On request |
