Description

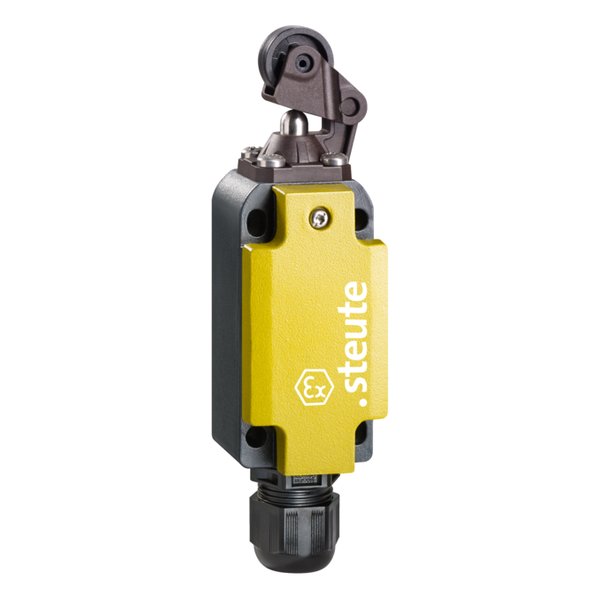

Steute Ex ES 98 H-02 -40°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ES 98 H-02 -40°C |
| Article No. (MPN) | 1400721 |
| Product Category | Sensors |
| Sealing | silicone |
| Switch type | type 1 |
| Coding level | no coding |
| Degree of protection | IP66 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC contacts, type Zb |
| Connection | screw connection terminals, use copper conductors only |
| Cable entry | 1 x M20 x 1.5 (for cable glands only) |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Rated operating current I e | max. 4.4 A (T6) / max. 6.6 A (T5) |
| Rated operating voltage U e | max. 250 VAC; 125 VDC |
| Utilisation category | AC-15; DC-12 |
| Short-circuit protection | 4 A / 6 A gG fuse |
| Ambient temperature | -40 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Actuating speed | max. 0.5 m/s with a vertical actuating angle of 30° |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
