Description

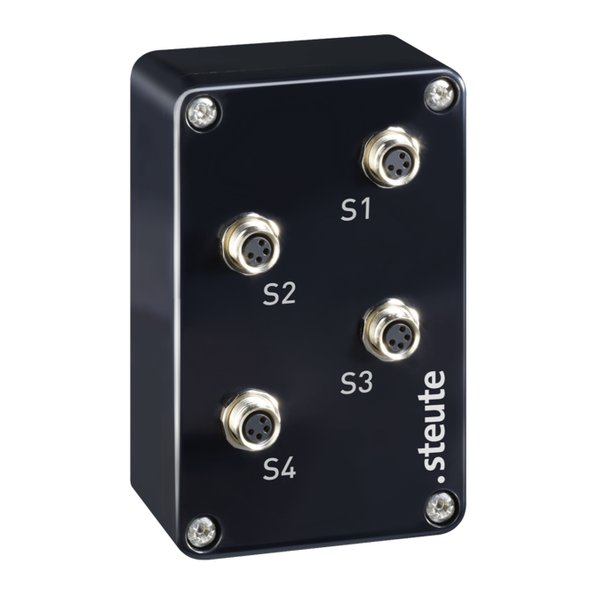

Steute RF I/O SW868-4E-BU-2,2Ah LBT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF I/O SW868-4E-BU-2,2Ah LBT |
| Article No. (MPN) | 1413529 |
| Product Category | Sensors |
| Enclosure | ABS, UL 94 HB, RAL 9005 |
| Antenna | internal antenna |
| Safety class | III |
| Ambient temperature | -20 °C … +80 °C |
| Type of installation | mount on an even surface |
| Mounting position | any |
| Mounting | screw connection |
| Connection | 4 x socket M8 x 1, 4-pole |
| Switch-on delay t on | max. 0.94 ms |
| Switch-off delay t off | max. 94.7 ms |
| Actuating time | min. 80 ms |
| Switching frequency | max. 5 Hz |
| Note | transmission of battery voltage and switching condition |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Wireless approvals | Europe: RED 2014/53/EU |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
