Description

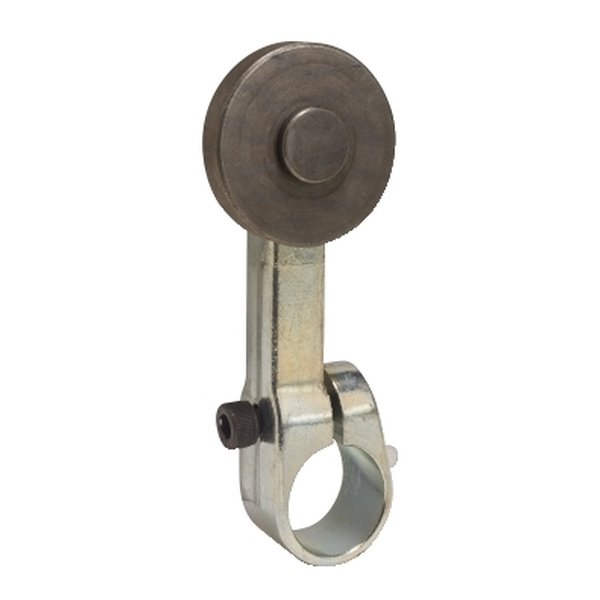

Telemecanique Sensors 9007B7 — Limit Switch Lever. Manufacturer designation: Limit switch lever, 9007, arm t+ft +options. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9007B7 |
| Product Category | Sensor Accessories |
| Range of product | 9007 |
| Series name | Severe duty |
| Product or component | Limit switch lever |
| Device short name | 9007T/FT |
| Associated head | 9007CS9 |
| Associated complete | 9007T |
| Movement of operating | Rotary |
| Type of operator | Cast zinc spring return roller lever length: 63.5 mm – |
| Type of roller | 1 steel outside roller (convertible) diameter: |
| Type of approach | Lateral approach |
| Positive opening | Without |
| Switch actuation | By 30° cam |
| Net weight | 0.05 kg |
| Ambient air temperature for operation | -10…185 °F |
| Ambient air temperature for storage | -10…185 °F |
| Environmental characteristic | Standard environment |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 2.286 cm |
| Package 1 Width | 2.286 cm |
| Package 1 Length | 8.636 cm |
| Package 1 Weight | 90.719 g |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
