Description

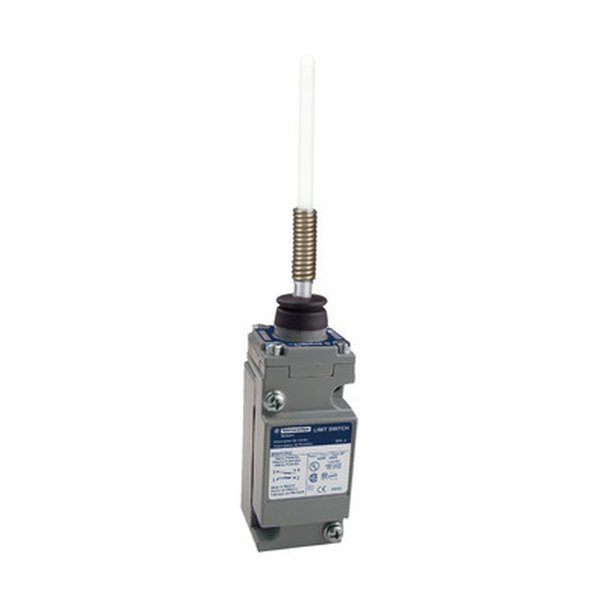

Telemecanique Sensors 9007C62J — LIMIT SWITCH. Manufacturer designation: Limit switch, 9007, 600 V 10amp c +options. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9007C62J |
| Product Category | Sensors |
| Range of product | 9007 |
| Series name | Heavy duty |
| Product or component | Limit switch |
| Product specific | Standard box |
| Device short name | 9007C |
| Body type | Plug-in |
| Head type | Multi-directional head |
| Fixing mode | By the body |
| Movement of operating | Multi-directional |
| Type of operator | Acetal resin spring return wobble stick (-) |
| Switch actuation | By any moving part |
| Type of approach | Multi-directional approach, multi-directional |
| Electrical connection | Screw-clamp terminals (AWG 22…AWG 12), 1…2 |
| Cable entry | 1 entry for 1/2″ – 14 NPT conforming to ANSI |
| Contacts type and | 2(NC-NO) |
| Contact operation | Snap action |
| Positive opening | Without |
| Body material | Zinc |
| Head material | Zinc |
| Switch function | DPDT-DB |
| Contact form | Form ZZ |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
