Description

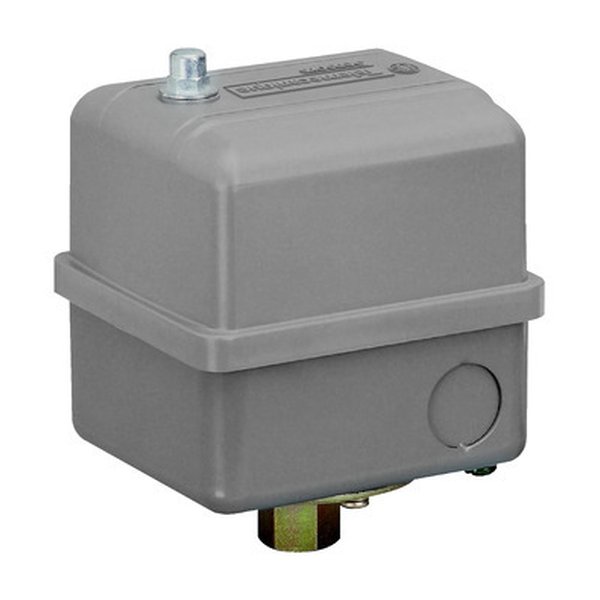

Telemecanique Sensors 9013GHG2J63 — DRUKSCHAKELAAR. Manufacturer designation: Pumptrol, pump or compressor switch 9013GH,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9013GHG2J63 |
| Product Category | Sensors |
| Range of product | Pumptrol |
| Pressure sensor name | 9013GH |
| Pressure sensor size | 1378.95 kPa (275.79…1172.11 kPa) |
| Value of setting | 145…175 psi |
| Electrical circuit type | Power circuit |
| Product specific | Control electrically driven water pumps and air |
| Type of packing | Individual |
| Pressure sensor type | Electromechanical pressure switch |
| Controlled fluid | Air (-0…70 °C) |
| Adjustable range on rising pressure | 448.16…1378.95 kPa |
| Approximate adjustable differential | 137.90…275.79 kPa |
| Destruction pressure | 2068.4 kPa |
| Pressure actuator | Diaphragm |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Cable entry number | 3 knock-outs for 1/2″ conduit conforming to UL 508 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG |
| Fluid connection type | 0.25 inch NPSF internal conforming to UL 508 |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
