Description

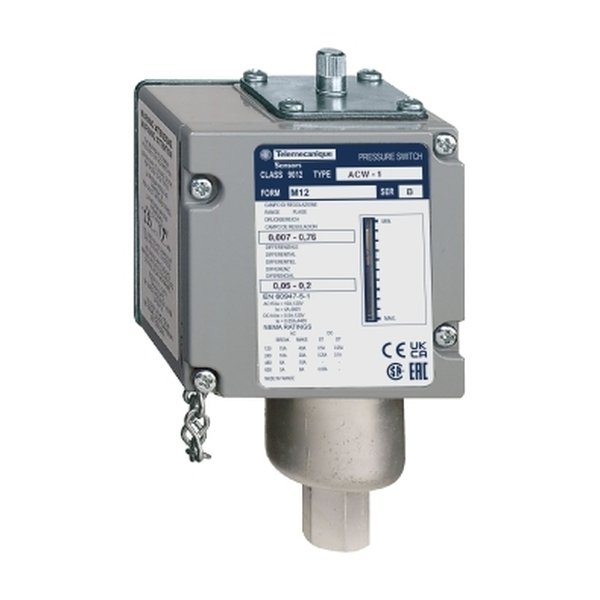

Telemecanique Sensors ACW21M129012 — PRESSOSTAT ACW21 M12. Manufacturer designation: Pressure sensors XM, pressure switch ACW. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | ACW21M129012 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Pressure sensor name | ACW |
| Pressure sensor type | Electromechanical pressure sensor |
| Product specific | For regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Contacts type and | 2 C/O simultaneous, snap action |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Materials in contact with | Phosphor bronze |
| Pressure rating | 7.6 bar |
| Adjustable range of | 0.07…7.6 bar |
| Pressure actuator | Bellows |
| Electrical circuit type | Control circuit |
| Controlled fluid | Air (-73…125 °C) |
| Short-circuit protection | 10 A cartridge fuse, type gG |
| Enclosure material | Zinc alloy |
| Possible differential minimum at low setting | 0.9 bar |
| Possible differential minimum at high setting | 0.9 bar |
| Possible differential maximum at low setting | 2.8 bar |
| Possible differential maximum at high setting | 2.8 bar |
| Maximum permissible pressure – per cycle | 17 bar |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
