Description

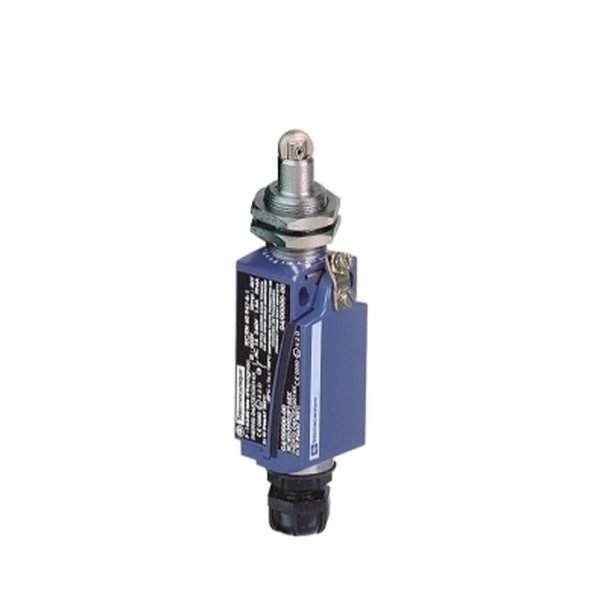

Telemecanique Sensors XCKD39H2P16EX — Limit switch. Manufacturer designation: Limit switch, Limit switches XC Standard,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCKD39H2P16EX |
| Product Category | Sensors |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component | Limit switch |
| Device short name | XCKD |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | M18 plunger head |
| Fixing mode | By the head |
| Movement of operating | Linear |
| Type of operator | Spring return roller plunger steel |
| Switch actuation | By 30° cam |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x |
| Cable entry number | 1 tapped entry for M16 x 1.5 cable gland (included) |
| Contacts type and | 2 NC + 1 NO |
| Contacts insulation form | Zb |
| Contact operation | Snap action |
| Positive opening | With |
| Minimum force for | 10 N |
| Maximum actuation | 0.5 m/s |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
