Description

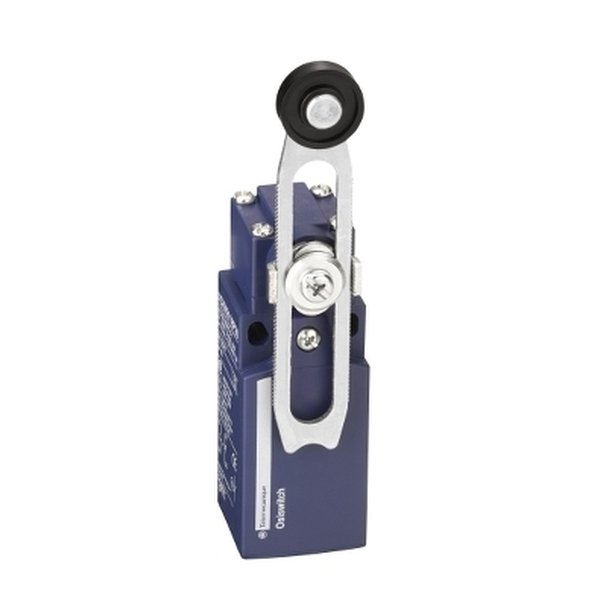

Telemecanique Sensors XCKN438298001 — Limit switch. Manufacturer designation: Limit switch, Limit switches XC Standard,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCKN438298001 |
| Product Category | Sensors |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component | Limit switch |
| Device short name | XCKN |
| Head type | Rotary head |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Contacts insulation form | Zb |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 500 v | (pollution degree 3) conforming to IEC 60947-1 |
| 300 v | conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 KV conforming to IEC 60664 |
| 6 kV | conforming to IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse, type gG |
| Mechanical durability | 10000000 cycles |
| Net weight | 0.2 kg |
| Terminals description ISO n°1 | (21-22)NC |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
