Description

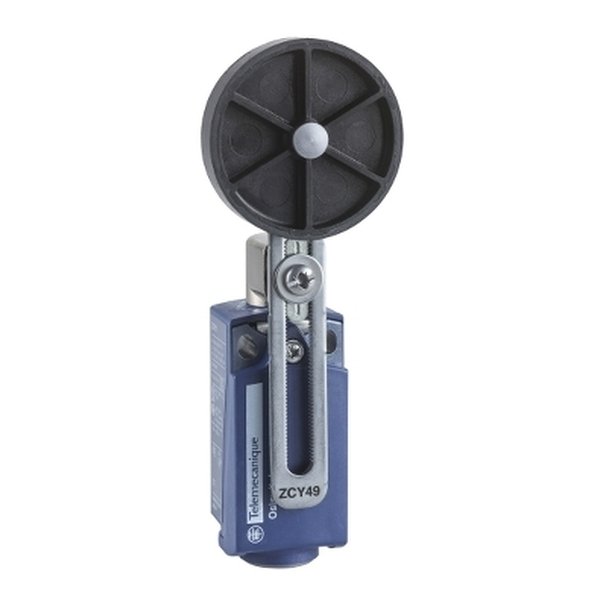

Telemecanique Sensors XCKP2149P16 — Limit switch. Manufacturer designation: Limit switch, Limit switches XC Standard,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCKP2149P16 |
| Product Category | Sensors |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component | Limit switch |
| Device short name | XCKP |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Rotary head |
| Body material | Plastic |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating | Rotary |
| Type of operator | Spring return roller lever thermoplastic variable |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Contacts insulation form | Zb |
| Positive opening | With |
| Minimum torque for tripping | 0.1 N.m |
| Maximum actuation speed | 1.5 m/s |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
