Description

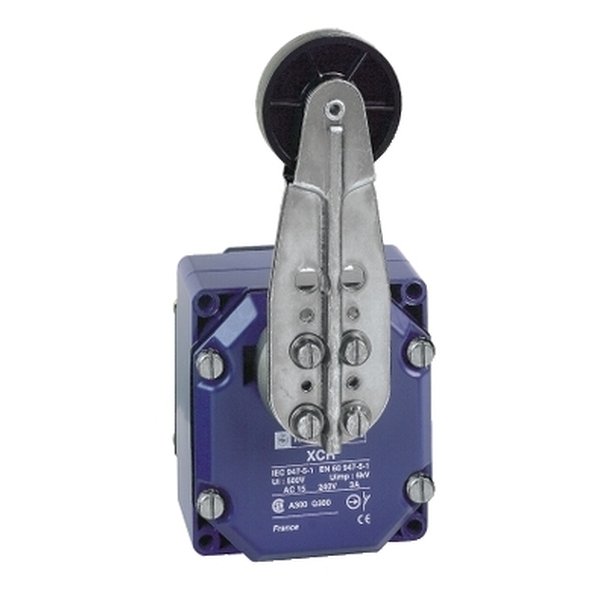

Telemecanique Sensors XCRB15 — Limit switch. Manufacturer designation: Limit switch, Limit switches XC Standard, XCR,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCRB15 |
| Product Category | Sensors |
| Range of product | OsiSense XC |
| Series name | Special format |
| Product or component | Limit switch |
| Product specific | For hoisting and mechanical handling applications |
| Device short name | XCR |
| Body type | Fixed |
| Head type | Rotary head |
| Fixing mode | By the body |
| Movement of operating | Rotary |
| Type of operator | Spring return roller lever thermoplastic large |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x |
| Contacts type and | 2 x (1 NC + 1 NO) |
| Contact operation | Snap action |
| Contact block per | 1 per direction |
| Positive opening | With |
| Body material | Zinc alloy |
| Switch actuation | By any moving part |
| Contacts insulation form | Zb |
| Positive opening minimum torque | 0.75 N.m |
| Minimum torque for tripping | 0.45 N.m |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
