Description

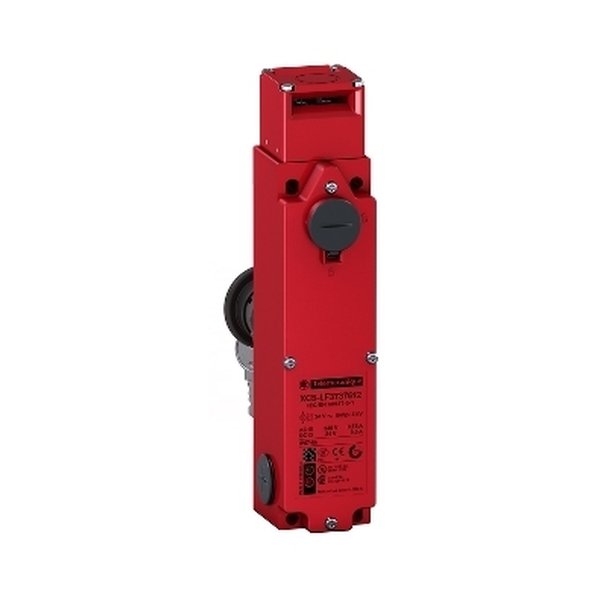

Telemecanique Sensors XCSL762F3 — Safety switch. Manufacturer designation: Safety switch, Telemecanique Safety switches. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSL762F3 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety switch |
| Component name | XCSL |
| Head type | Key operated turret head |
| Positive opening | With NC contact |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Power consumption in VA | 10 VA inrush |
| 10 va | sealed |
| Signalling circuit consumption | 7 mA |
| Mechanical durability | 1000000 cycles |
| Maximum load current | <= 15 A |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-5-1 |
| Protection type | Overvoltage protection for signalling circuit |
| Maximum operating rate | 10 cyc/mn for maximum durability |
| Protective treatment | TC |
| Electrical shock protection class | Class I conforming to EN/IEC 60536 |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 5.2 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 28.0 cm |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
