Description

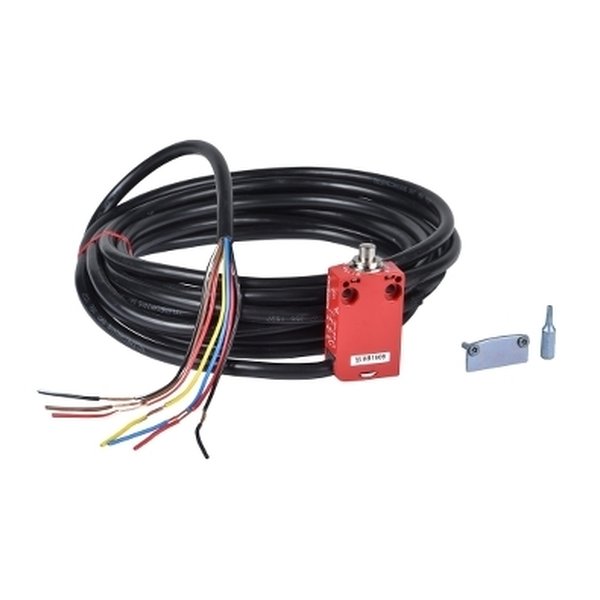

Telemecanique Sensors XCSM4110L5 — Safety limit switch. Manufacturer designation: Safety limit switch, Telemecanique Safety. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSM4110L5 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety limit switch |
| Component name | XCSM |
| Head type | Plunger head |
| Protection technology | Plastic protective cover, secured by 5-lobe socket |
| Type of operator | Metal end plunger |
| Contacts type and | 1 NC + 1 NC + 1 NO + 1 NO |
| Contact operation | Snap action |
| Electrical connection | Pre-cabled |
| Cable length | 5 m |
| Cable composition | 9 x 0.34 mm² |
| Fixing mode | By the body |
| Positive opening | With NC contact |
| Mechanical durability | 10000000 cycles |
| Minimum force for tripping | 8.5 N |
| Positive opening minimum force | 42.5 N |
| Minimum actuation speed | 0.01 m/min |
| Maximum actuation speed | 0.5 m/s |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 400 v | (pollution degree 3) conforming to IEC 60947-5-1 |
| 300 v | conforming to CSA C22.2 No 14 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
