Description

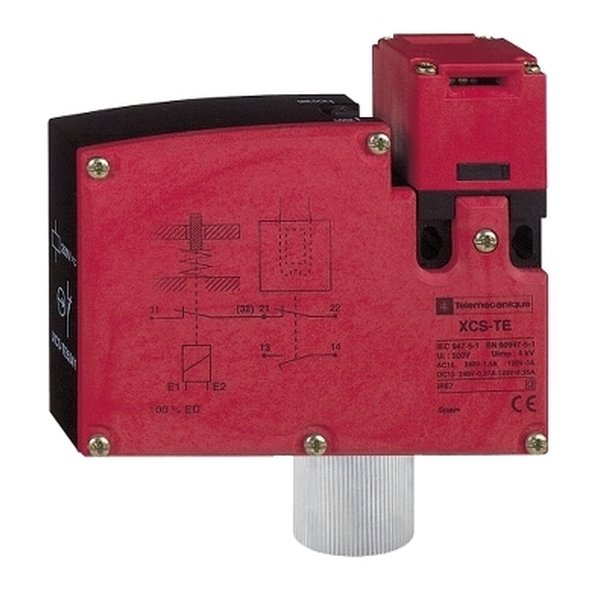

Telemecanique Sensors XCSTE7533 — Safety interlock 240 VAC 5 A t XCS. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSTE7533 |
| Product Category | Safety Switching Devices |
| Device short name | XCSTE |
| Enclosure type | Dust and damp proof enclosure for indoor/outdoor |
| [In] rated current | 6 A |
| [Us] rated supply voltage | 120 V |
| Contact operation | Slow-break |
| Contacts type and composition | 2 NC |
| Enclosure material | plastic enclosure |
| Locking options description | With interlocking, locking by solenoid |
| Permissible voltage | 300 V AC |
| Ambient air temperature for operation | -13…140 °F |
| IP degree of protection | IP67 |
| NEMA degree of protection | NEMA 4/4X/12 |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 4.064 cm |
| Package 1 Width | 10.668 cm |
| Package 1 Length | 11.684 cm |
| Package 1 Weight | 439.989 g |
| Sustainable offer status | Green Premium product |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
