Description

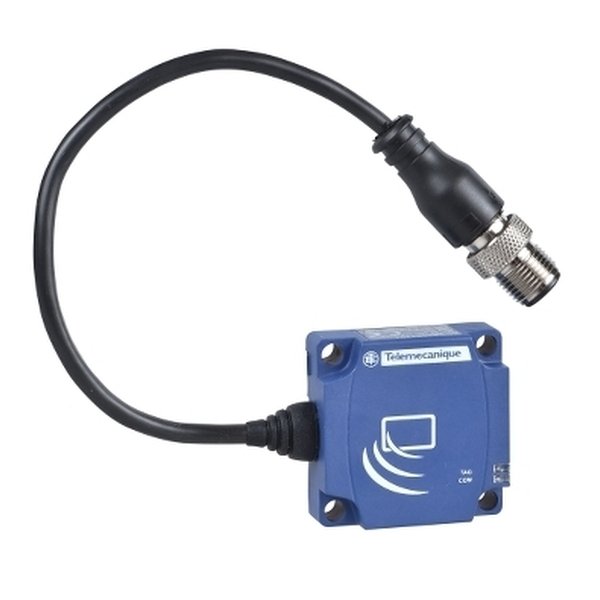

Telemecanique Sensors XGCS8901201S05 — Compact smart antenna. Manufacturer designation: Compact smart antenna, Radio frequency. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XGCS8901201S05 |
| Product Category | Sensors |
| Range of product | Telemecanique Radio frequency identification XG |
| Product or component | Compact smart antenna |
| RFID compact station | XGCS |
| RFID frequency | 13.56 MHz |
| Electrical connection | 5 pin(s)male remote connector M12, shielded cable |
| Transmission rate | 9600 bauds…115200 bauds (automatic detection) |
| Outer dimension | 80 x 80 x 26 mm |
| Product compatibility | RFID microchip Fujitsu (MB89R118 – MB89R119) |
| [Sn] nominal sensing | 20…100 mm |
| [Us] rated supply | 24 V DC conforming to Protective Extra Low Voltage |
| Communication port protocol | Uni-Telway |
| Communication port support | RS485 |
| Associated tag type | Automatic detection of the type of tag |
| Supply voltage limits | 19.2…29 V DC |
| Current consumption | < 60 mA |
| Status LED | Communication network: 1 LED (dual colour) |
| Tightening torque | < 3 N.m |
| Net weight | 0.257 kg |
| Product certifications | UL, FCC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Condition | New & original |
| Availability | On request |
