Description

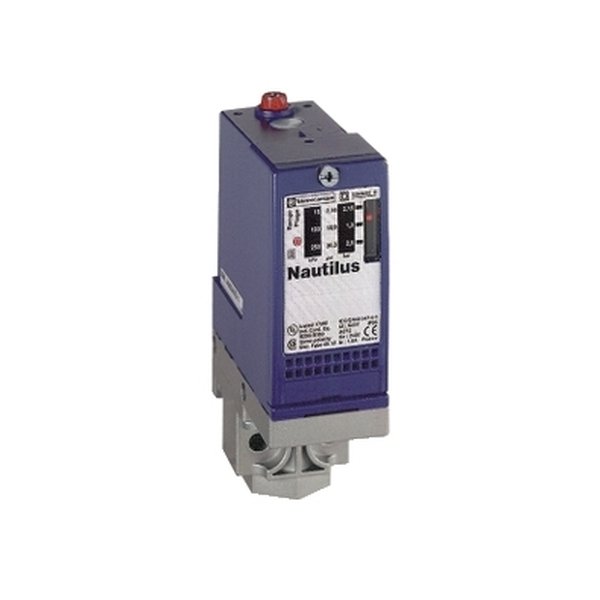

Telemecanique Sensors XMLA160D2S14 — pressure switch XMLA 160 bar – fixed s. Manufacturer designation: Pressure switch XMLA 160 bar – fixed scale 1. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMLA160D2S14 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Product or component | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical pressure sensor |
| Device short name | XMLA |
| Pressure rating | 160 bar |
| Controlled fluid | Hydraulic oil (0…160 °C) |
| Fluid connection type | PT 1/4 (female) |
| Electrical connection | Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm² |
| AWG gauge | AWG 20…AWG 14 |
| Cable entry | Cable gland 7…13 mm |
| Contacts type and | 1 C/O |
| Pressure switch type of | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Adjustable range of | 10…160 bar |
| Maximum permissible | 360 bar |
| Destruction pressure | 720 bar |
| Pressure actuator | Piston |
| Materials in contact with | FPM, FKM |
| Enclosure material | Zinc alloy |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
