Description

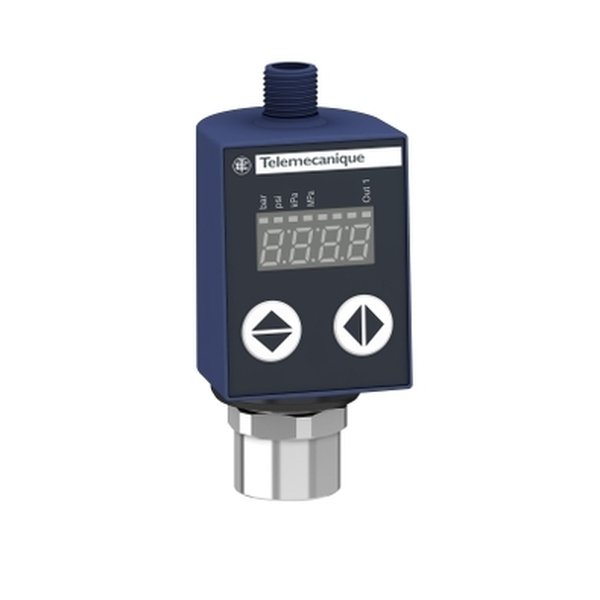

Telemecanique Sensors XMLR016G1P75 — Electronic pressure sensors. Manufacturer designation: Electronic pressure sensors, Pressure sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMLR016G1P75 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Product or component | Electronic pressure sensors |
| Pressure sensor type | Pressure transmitter |
| Pressure switch type of | Pressure transmitter with 1 switching output |
| Device short name | XMLR |
| Pressure rating | 16 Bar |
| Maximum permissible | 6205.3 KPa |
| Accidental pressure | 6.2 MPa |
| Destruction pressure | 6205.3 KPa |
| Controlled fluid | Fresh water (0…80 °C) |
| Fluid connection type | G 1/4 (female) conforming to DIN 3852-Y |
| [Us] rated supply | 24 V DC SELV (voltage limits: 17…33 V) |
| Current consumption | <= 50 mA |
| Electrical connection | Male connector M12, 4 pins |
| Analogue output function | 0…10 V |
| Type of output signal | Analogue + discrete |
| Discrete output type | Solid state PNP, NO/NC programmable |
| Maximum switching current | 250 mA |
| Contacts type and composition | NO/NC programmable |
| Scale type | Fixed differential |
| Maximum voltage drop | 2 V |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
