Description

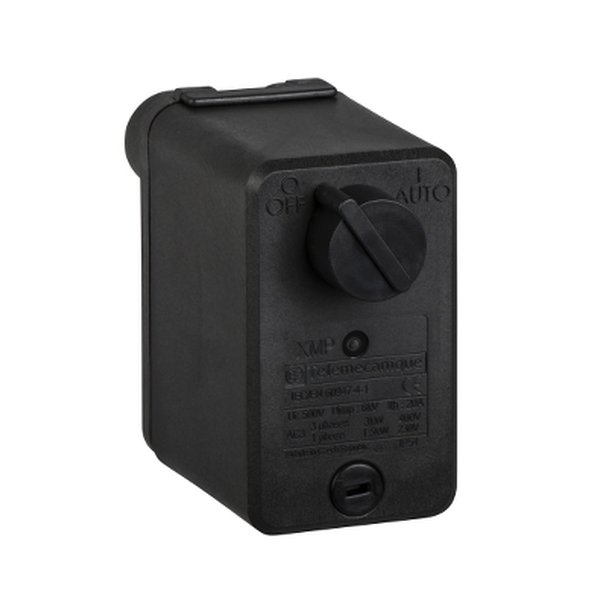

Telemecanique Sensors XMPR12C2133 — Pressure sensors XM. Manufacturer designation: Pressure sensors XM, pressure sensor XMP,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMPR12C2133 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMP |
| Pressure rating | 12 bar |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Controlled fluid | Air (0…70 °C) |
| Cable entry | 2 entries tapped for Pg 13.5 cable gland conforming |
| Contacts type and | 3 NC snap action |
| Pressure switch type of | Regulation between 2 thresholds |
| Electrical connection | Screw-clamp terminals, clamping capacity: |
| Electrical circuit type | Power circuit |
| Scale type | Adjustable differential |
| Local display | Without |
| Adjustable range of switching point on falling | 0.3…10.3 bar |
| Adjustment range high setting | 1.3…12 bar |
| Possible differential minimum at low setting | 1 bar |
| Possible differential minimum at high setting | 1.7 bar |
| Possible differential maximum at high setting | 8.4 bar |
| Destruction pressure | 30 bar |
| Type of decompression valve | Straight valve olive connection |
| Control type | ON/OFF knob |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
