Description

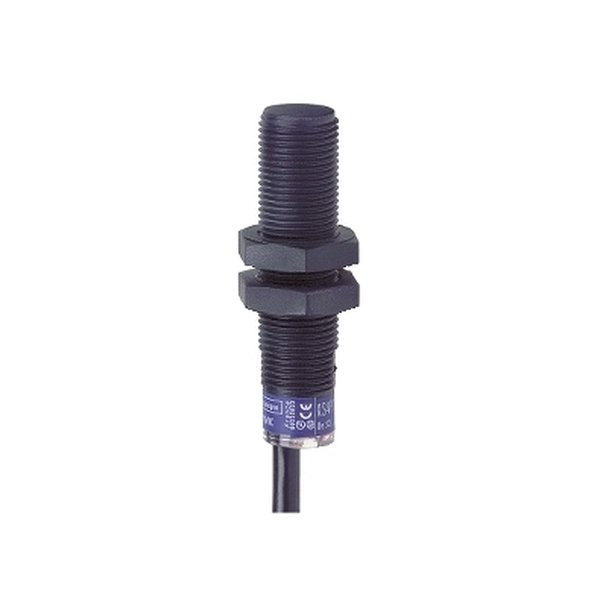

Telemecanique Sensors XS4P12PA370L2 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS4P12PA370L2 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS4 |
| Sensor design | Cylindrical M12 |
| Body type | Fixed |
| Detector flush mounting | Non flush mountable |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing | 4 mm |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Cable |
| Cable length | 10 m |
| [Us] rated supply | 12…48 V DC with reverse polarity protection |
| Switching capacity in | <= 200 mA DC with overload and short-circuit |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Thread type | M12 x 1 |
| Detection face | Frontal |
| Front material | PPS |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
