Description
Telemecanique Sensors XS8C4A1MPG13 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS8C4A1MPG13 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS8 |
| Sensor design | Form 40 x 40 x 117 |
| Body type | Fixed |
| Detector flush mounting | Flush mountable |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing | 20 mm |
| Discrete output function | 1 NO or 1 NC programmable |
| Output circuit type | AC/DC |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply | 24…240 V AC 50/60 Hz |
| Switching capacity in | 5…200 mA DC |
| IP degree of protection | IP67 conforming to IEC 60529 |

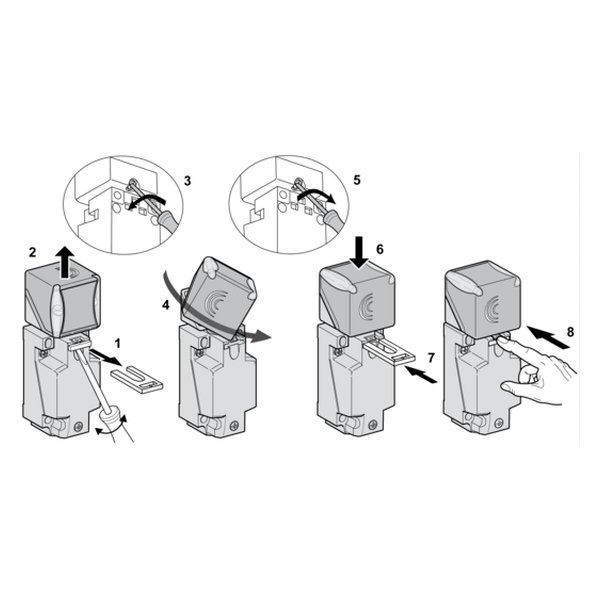

| Detection face | 5 positions turret head |
| Front material | PBT |
| Operating zone | 0…16 mm |
| Differential travel | 3…15% of Sr |
| Condition | New & original |
| Availability | On request |
