Description

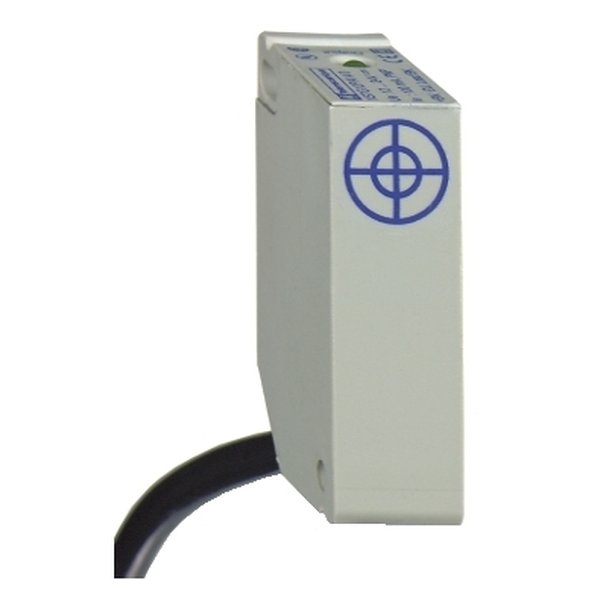

Telemecanique Sensors XS8G12MA230 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS8G12MA230 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS8 |
| Sensor design | Form 12 x 40 x 26 |
| Body type | Fixed |
| Enclosure material | Plastic |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing | 4 mm |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Cable length | 2 m |
| Wire insulation material | PVC |
| [Us] rated supply | 24…210 V DC |
| Switching capacity in | 5…200 mA |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Detection face | Lateral |
| Detector flush mounting acceptance | Non flush mountable |
| Front material | Plastic |
| Operating zone | 0…3.2 mm |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
