Description

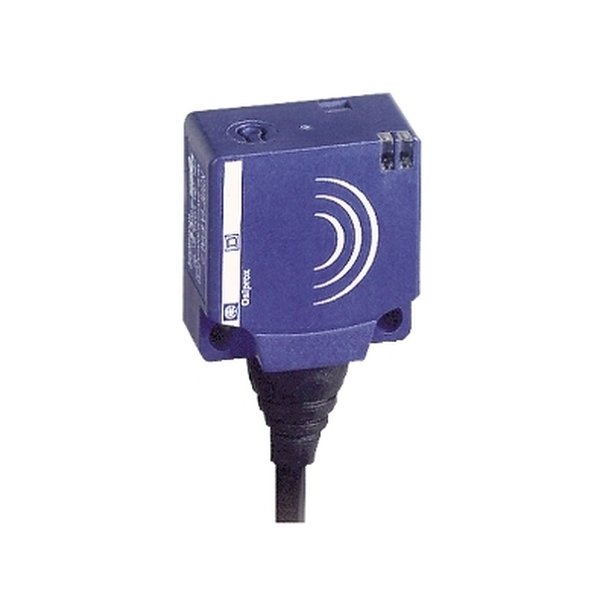

Telemecanique Sensors XS9E111A1L2 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS9E111A1L2 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS9 |
| Sensor design | Flat form 26 x 26 x 13 |
| Body type | Fixed |
| Detector flush mounting | Flush mountable |
| Enclosure material | PBT |
| Type of output signal | Analogue |
| Wiring technique | 3-wire |
| [Sn] nominal sensing | 10 mm |
| Output circuit type | DC |
| Analogue output range | 0…10 V |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply | 24 V DC |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Detection face | Frontal |
| Front material | PBT |
| Operating zone | 1…10 mm |
| Repeat accuracy | <= 3% of Sr |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
