Description

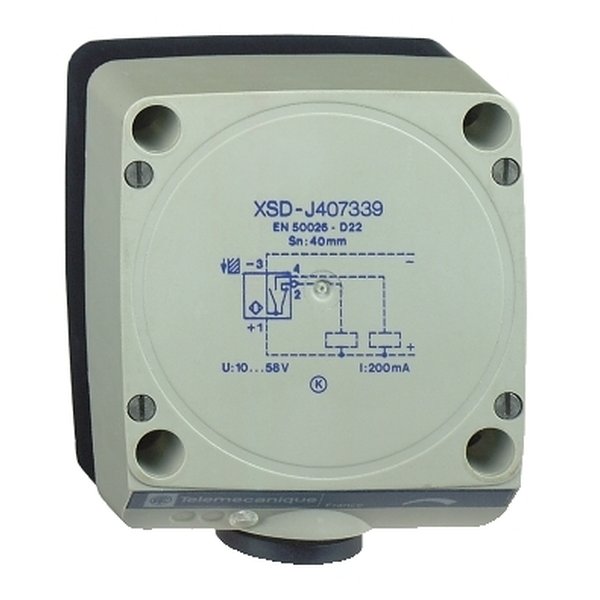

Telemecanique Sensors XSDH407339 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XSDH407339 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XSD |
| Sensor design | Form 80 x 80 x 40 |
| Body type | Fixed |
| Enclosure material | Plastic |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| [Sn] nominal sensing | 40 mm |
| Discrete output function | 1 NO + 1 NC |
| Discrete output type | PNP |
| Electrical connection | Screw-clamp terminals |
| [Us] rated supply | 12…48 V DC |
| IP degree of protection | IP67 |
| Detection face | Frontal |
| Detector flush mounting acceptance | Non flush mountable |
| Front material | Plastic |
| Output circuit type | DC |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland |
| Switching capacity in mA | <= 200 mA |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
