Description

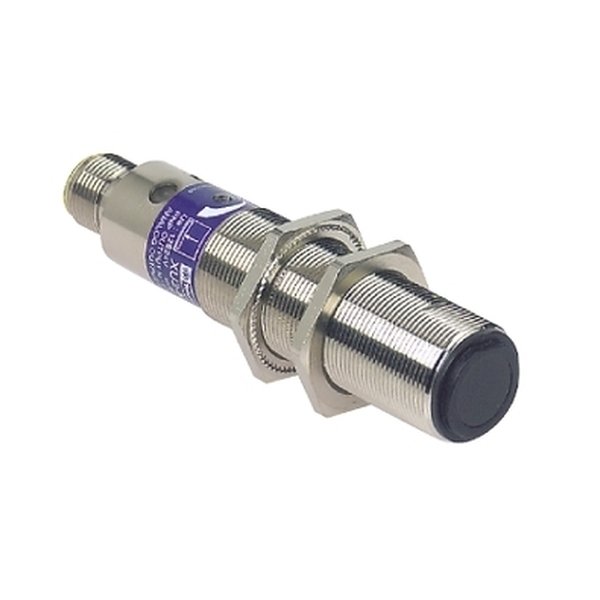

Telemecanique Sensors XU2M18MC230KT — Photoelectric sensors XU. Manufacturer designation: Photoelectric sensors XU, XU2, emitter,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XU2M18MC230KT |
| Product Category | Sensors |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XU2 |
| Sensor design | Cylindrical M18 |
| Detection system | Thru beam |
| Line of sight type | Axial |
| Supply circuit type | AC/DC |
| Wiring technique | 2-wire |
| Electrical connection | 1 male connector 1/2″20 UNF, 3 pins |
| [Sn] nominal sensing | 15 m thru beam need a receiver |
| Enclosure material | Nickel plated brass |
| Lens material | PMMA |
| Maximum sensing distance | 20 m |
| Add on output | Without |
| [Us] rated supply voltage | 24…240 V AC/DC |
| Supply voltage limits | 20…264 V AC/DC |
| Maximum delay first up | 300 ms |
| Product certifications | CE[RETURN]CSA[RETURN]UL |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
