Description

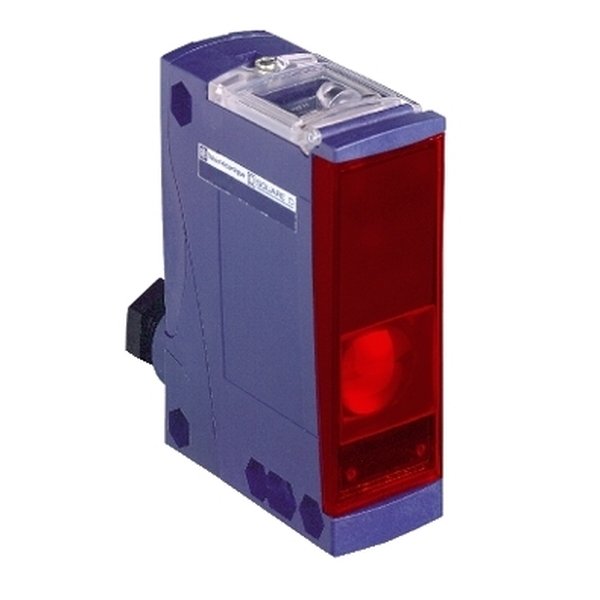

Telemecanique Sensors XUX0ARCTT16T — Photoelectric sensors XU. Manufacturer designation: Photoelectric sensors XU, XUX, emitter,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XUX0ARCTT16T |
| Product Category | Sensors |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Thru beam |
| Supply circuit type | AC/DC |
| Wiring technique | 3-wire |
| Electrical connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² |
| [Sn] nominal sensing | 40 m thru beam need a receiver |
| Enclosure material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 60 m thru beam |
| Add on input | Test by emission breaking |
| Status LED | 1 LED (green) for supply on |
| [Us] rated supply voltage | 24…240 V AC/DC |
| Supply voltage limits | 20…264 V AC/DC |
| Switching frequency | <= 20 Hz |
| Maximum voltage drop | <1.5 V (closed state) |
| Current consumption | 20 mA no-load |
| Maximum delay first up | 200 ms |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
