Description

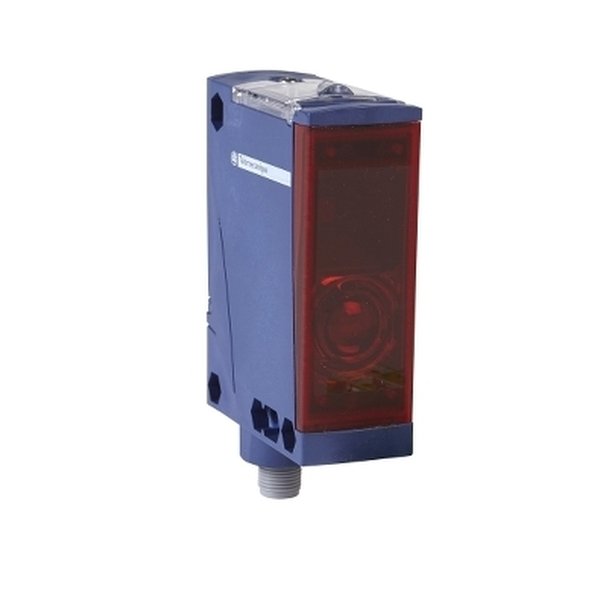

Telemecanique Sensors XUX8ARCTT16 — Photoelectric sensors XU. Manufacturer designation: Photoelectric sensors XU, XUX, BGS, Sn 2 m,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XUX8ARCTT16 |
| Product Category | Sensors |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Diffuse with background suppression |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring technique | 5-wire |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | Screw-clamp terminals, 1 x 0.75…1 x 1.5 mm² |
| Product specific | Long sensing distance with high accuracy |
| [Sn] nominal sensing | 2 m |
| Enclosure material | PC |
| Lens material | PMMA |
| Output type | Relay |
| Cable entry | ISO 16 cable gland, cable outer diameter: 7…10 mm |
| Status LED | Supply on: 1 LED (green) |
| [Us] rated supply voltage | 24…240 V AC/DC |
| Supply voltage limits | 20…264 V AC/DC |
| Switching frequency | 20 Hz |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
