Description

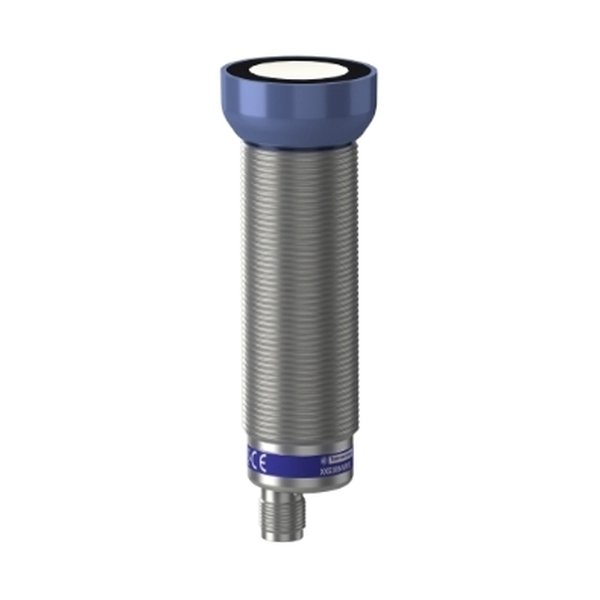

Telemecanique Sensors XXS30B4VM12 — Ultrasonic sensors XX. Manufacturer designation: Ultrasonic sensors XX, ultrasonic sensor,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XXS30B4VM12 |
| Product Category | Sensors |
| Range of product | Telemecanique Ultrasonic sensors XX |
| Sensor type | Ultrasonic sensor |
| Series name | General purpose |
| Sensor name | XXS |
| Sensor design | Cylindrical M30 |
| Detection system | Diffuse |
| [Sn] nominal sensing | 4 M adjustable with remote teach push-button |
| Type of output signal | Analogue |
| Wiring technique | 5-wire |
| Analogue output | 0…10 V |
| [Us] rated supply | 24 V DC with reverse polarity protection |
| Electrical connection | Male connector M12 5 pins |
| [Sd] sensing range | 0.420…4 m |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Enclosure material | Nickel plated brass |
| Front material | Epoxy |
| Supply voltage limits | 14…30 V DC |
| Function available | With synchronisation mode |
| [Sa] assured operating distance | 0.420…4 m (teach mode) |
| Blind zone | 420 mm |
| Transmission frequency | 80 kHz |
| Condition | New & original |
| Availability | On request |
