Description

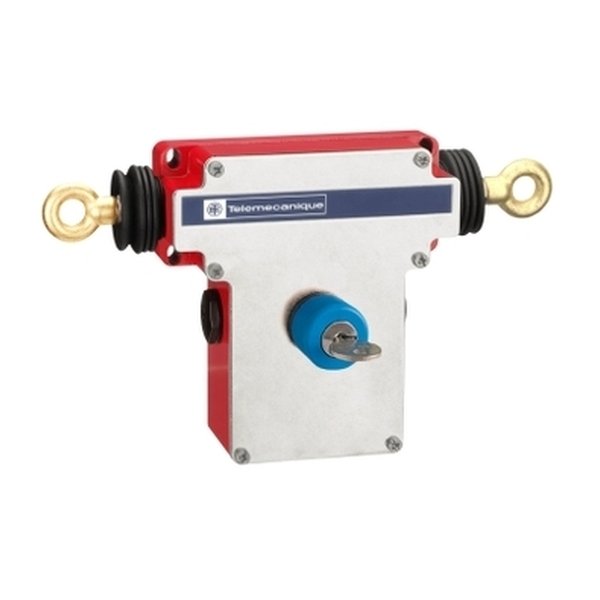

Telemecanique Sensors XY2CEDC590 — Dual emergency stop rope pull switch. Manufacturer designation: Dual emergency stop rope pull switch,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XY2CEDC590 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Emergency stop rope pull switches |
| Product or component | Dual emergency stop rope pull switch |
| Device short name | XY2CED |
| Housing colour | Red RAL 3000 |
| Overvoltage category | Class I conforming to EN/IEC 61140 |
| Local signalling | Without pilot light |
| Trigger cable maximum length | 2 x 100 m |
| Bellow material | Silicone |
| Body material | Zamak |
| Cover material | Stainless steel |
| Key number | 455 |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Slow-break |
| Trigger cable anchor point | RH and LH sides |
| Connections – terminals | Screw clamp terminal, 1 x 0.5…2 x 1.5 mm² |
| Tightening torque | 0.8…1.2 N.m |
| Cable entry number | 3 plain hole for Pg 13.5 or ISO M20 cable gland |
| Mechanical durability | 60000 cycles |
| Distance between cable supports | 3…5 m |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Condition | New & original |
| Availability | On request |
