Description

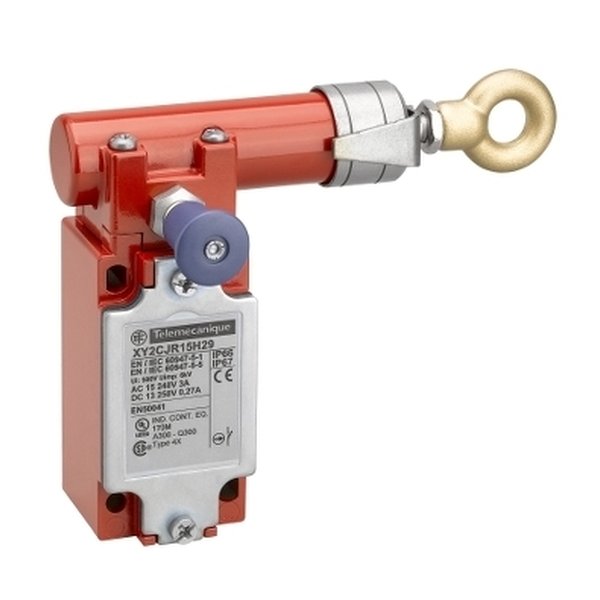

Telemecanique Sensors XY2CJR19H29 — Latching emergency stop rope pull swit. Manufacturer designation: Latching emergency stop rope pull switch,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XY2CJR19H29 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Emergency stop rope pull switches |
| Product or component | Latching emergency stop rope pull switch |
| Device short name | XY2C |
| Housing colour | Red RAL 3000 |
| Overvoltage category | Class I conforming to EN/IEC 61140 |
| Local signalling | Color indicator |
| Trigger cable maximum length | 30 m |
| Body material | Zamak |
| Cover material | Galvanised steel |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break |
| Trigger cable anchor point | RH side |
| Connections – terminals | Screw clamp terminal, 1 x 0.34…1 x 1 mm² |
| Tightening torque | 0.8…1.2 N.m |
| Cable entry number | 1 tapped entry for ISO M20 cable gland |
| Mechanical durability | 100000 cycles |
| Distance between cable supports | 5 m |
| [Ithe] conventional enclosed thermal current | 6 A |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| 300 v | conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| Condition | New & original |
| Availability | On request |
