Description

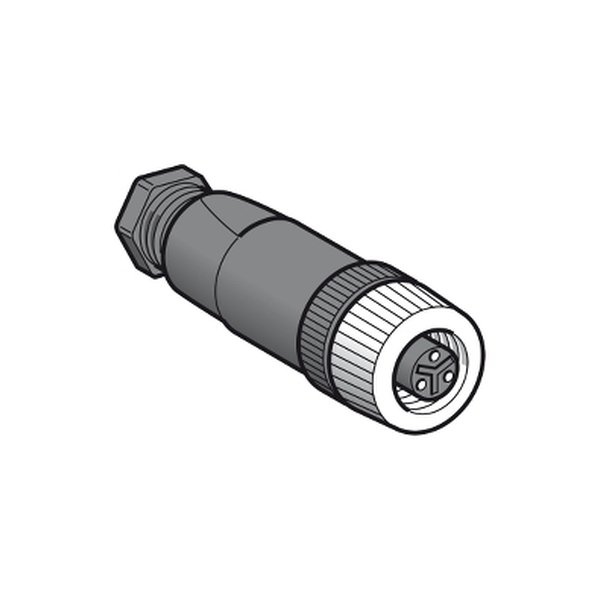

Telemecanique Sensors XZCC20FDM30B — Female. Manufacturer designation: Female, 1/2 20UNF, 3 pin, straight connector,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XZCC20FDM30B |
| Product Category | Sensors |
| Range of product | Telemecanique Cabling components |
| Accessory / separate | Cabling accessories |
| Electrical connection | Straight female connector 1/2 20 UNF, 3 pins |
| Collar material | Metal |
| Status LED | Without |
| Cable connection | Screw terminal / wire size <0.75 mm² / clamping |
| Cable gland type | Pg 7 |
| Cable connector fixing | Screw-on |
| [Ue] rated operational voltage | 250 V AC |
| [In] rated current | 4 A |
| Enclosure material | Plastic |
| Minimum insulating resistance | 1000 GΩ |
| Contact resistance | 8000 µOhm |
| Net weight | 0.02 kg |
| IP degree of protection | IP67 |
| Ambient air temperature for operation | -40…85 °C |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 24.000 g |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
